(CCR1016-12S-1S+) Cloud Core Router 1016-12S-1S+

1U rackmount, 12xSFP cage, 1xSFP+ cage, 16 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, RouterOS L6

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M coper module.

PoE-IN compatibility list

MikroTik SFP module compatibility table

Īsa rokasgrāmata

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

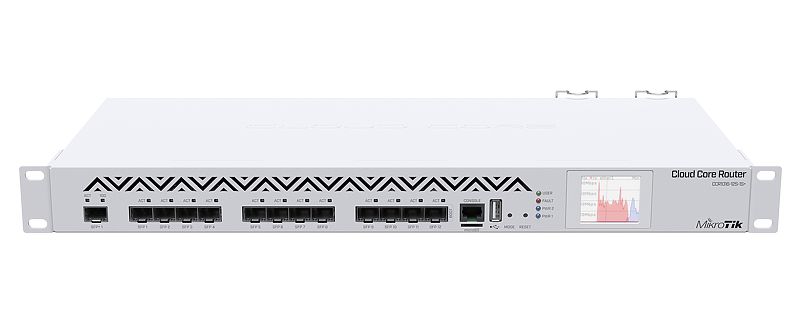

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

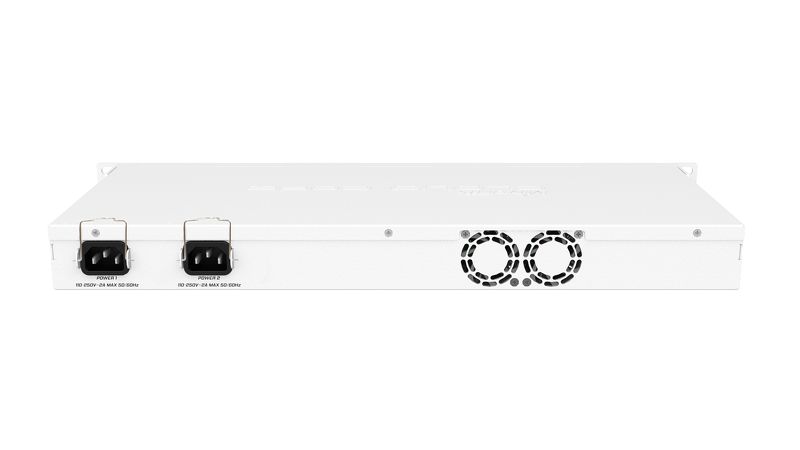

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.

12x SFP ports for 1 Gigabit connectivity
1x SFP+ port for 10 Gigabit connectivity
16 core Tilera CPU, 1.2GHz clock per core
12 Mbytes total on-chip cache
State of the art TILE GX architecture
Ports directly connected to CPU
1U rackmount case
Color touchscreen LCD display
two power supplies for redundancy

Quick Guide.pdf

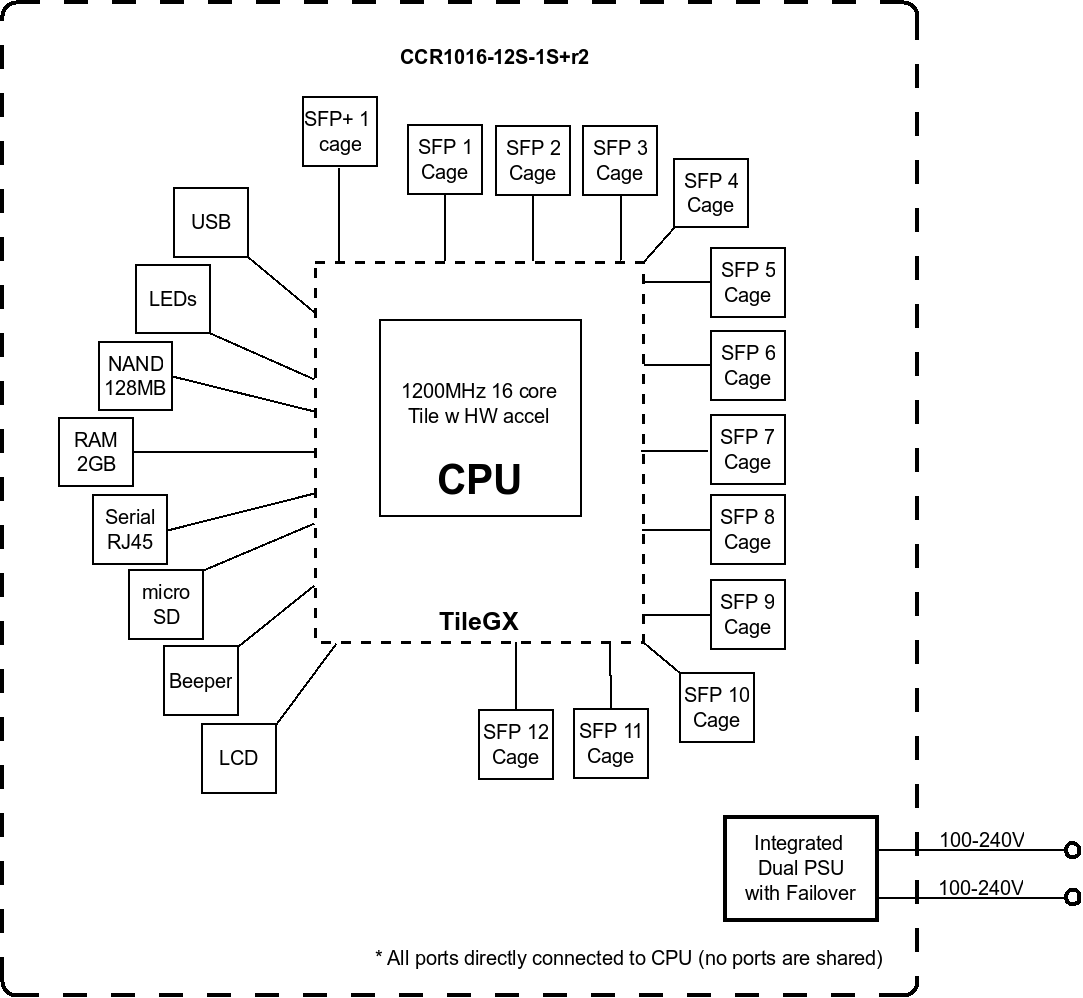

Block Diagram r2.png

Brochure.pdf

Cena on-line: € 661.25 + PVN
Paziņot kad pieejams
