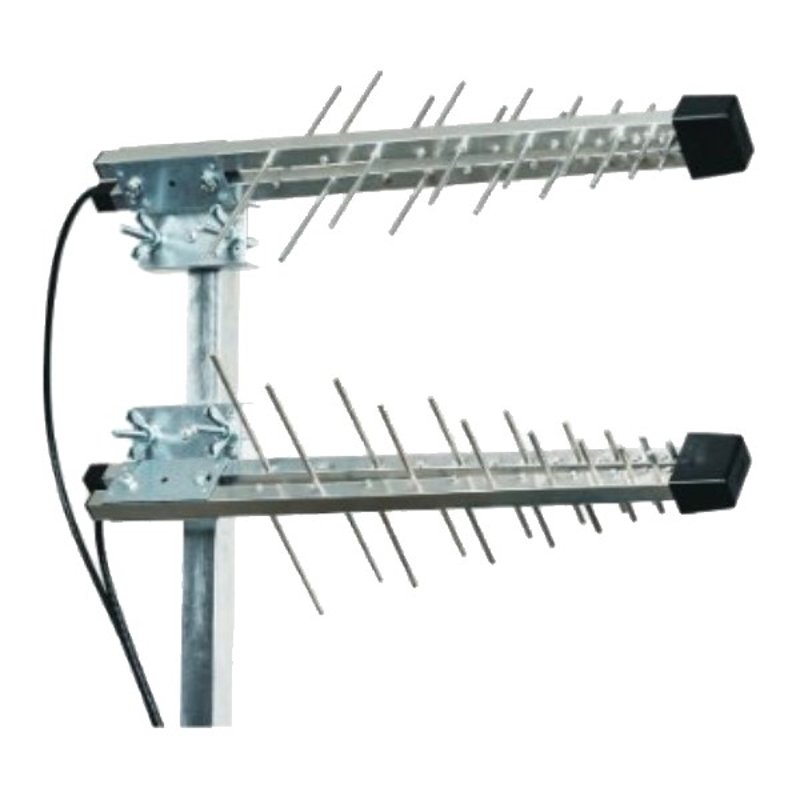

(P-32-L700-2.5) Iskra P-32 L700 U-MIMO LTE Antenna - Cable 2.5m

Antenna for ALL BANDS cellular

DESCRIPTION
Features:
Max. power connection: 50 W
Antenna length: 580 mm
Number of elements: 32
Polarization: 2 × 45 degrees
Front-back ratio: 22 dB
VSWR: <1.5:1
SPECIFICATION
Frequency Range 695 -2500
Gain 695 ~ 862 MHz / 7.5 dBi
1710-1880MHz / 7.5 dBi
2500-2690MHz / 9 dBi
880-960MHz / 7.5 dBi
1920-2170MHz / 7.5 dBi
2.4-2.5GHz / 9 dBi

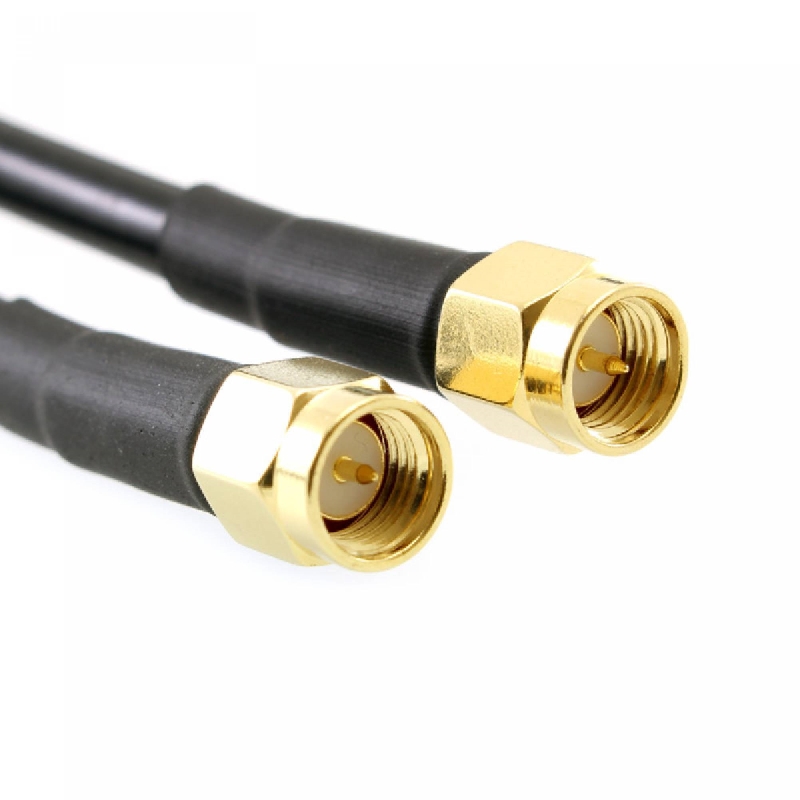

Connectors SMA male
Horizontal Beamwidth 78°
Vertical Beamwidth 70°
Nominal Impedance 50 Ω

Technical Specs Datasheet - Iskra P-32 L700 U-MIMO LTE Antenna - Cable 2.5m.PDF

Price: € 62.10 + VAT
Please call +371 67724000
Notify when available
